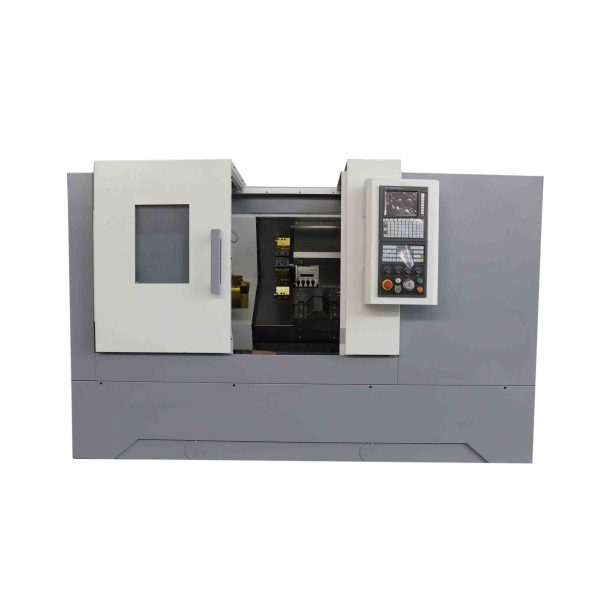

Slant Bed CNC TCK46 Feature:
· 2 axis cnc lathe machine equipped with high-rigidity bed and precision ball screw and guide rail, the stability of machining accuracy can be maintained for a long time.
· Optional power turret, Y-axis, and sub-spindle to achieve turning and milling compound processing.
· TCK46 used in a wide range of fields such as automobile manufacturing, hydraulic/pneumatic components, hydraulic/pneumatic components, general machinery, aerospace, etc. It is suitable for processing precision parts such as wheel hubs, transmission shafts, brake discs, pistons, pump bodies, gear blanks, flanges, lead screws, etc.
| Specifications
|
Unit | TCK46 |
| Swing over bed
|
mm | Φ450
|
| Spindle head form
|
– | A2-6 |
| Spindle motor power
|
kw | 7.5-11 |
| Max spindle speed
|
rpm | 5000 |
| Diameter of spindle through hole
|
mm | Φ66 |
| Inner diameter of pull through hole
|
mm | Φ52 |
| Turret form
|
– | 排刀/8工位液压刀塔 |
| Hydraulic chuck
|
inch | 8“ |
| X-axis travel
|
mm | 900 |
| Z-axis travel
|
mm | 350 |
| X/Z axis motor torque
|
n.m | 8/8 |
| X/Z axis motor torque moving speed
|
m/min | 24/24 |
| X/Z rail width
|
mm | 30/30 |
| Repeat positioning accuracy
|
mm | ±0.004 |
| Tool size
|
mm | 20×20 |
| Dimensions
|
m | 2.3×1.6×1.8 |
| Machine weight (about)
|
t | 2.5 |
