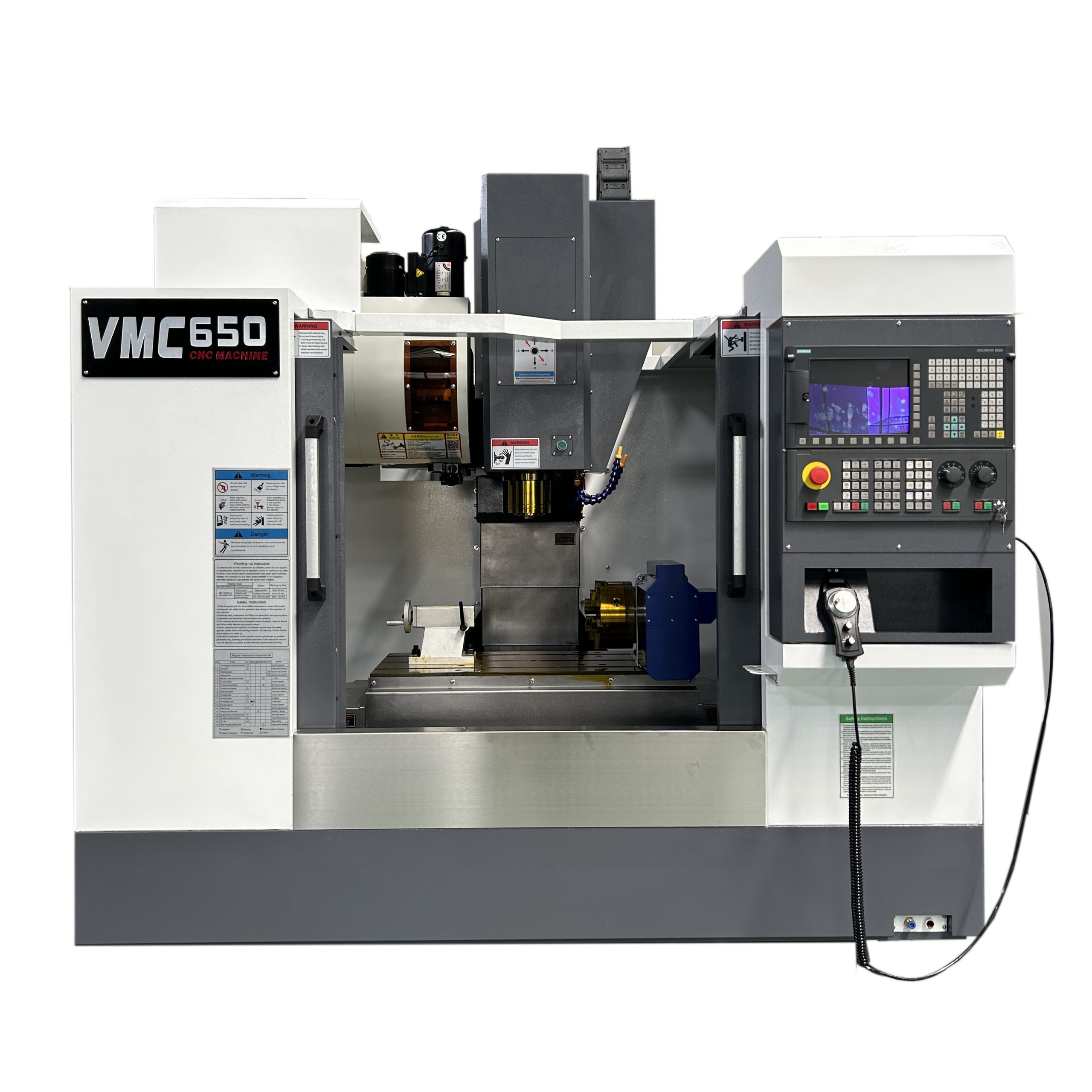

3 Axis Milling Machine VMC650

· Milling machine VMC650 the overall size of the machine is small, with strong space adaptability, can meet the production of small production space production environment.

· This model has been manufactured in large quantities, which greatly reduces the purchasing costs of spare parts and labour costs, and the VMC650 is highly cost-effective when compared to large vertical machining centres.

· Applicable to the mould industry, used in aluminium moulds, copper moulds, die-casting moulds, casting moulds, deep-drawing moulds and other types of moulds. Achieve a variety of processing methods, such as milling, drilling, boring, grinding, etc., to meet the processing needs of various parts.

Share This Page

· Milling machine VMC650 comes standard with the cost-effective GSK system, with high-performance Siemens and FANUC systems also available.

· The lead screw and linear guide rails are HIWIN brand.

Technical Parameters

Unit

VMC650

Table size

mm

900*400

Max capacity

kg

400

T-Slot

3-18-135

X-axis travel

mm

650

Y-axis travel

mm 450
Z-axis travel mm

500

X/Y/Z Max.rapid travers

m/min

24/24/24

Spindle speed

rpm 8000

Spindle motor

kw

5.5/7.5

Spindle Taper Type

BT-40

X/Y/Z Torque motor

n.m 10/10/15
Positioning accuracy mm

0.005

Repetition accuracy

mm 0.005
Dimensions mm

2500*2200*2500

Machine weight

kg

4000
