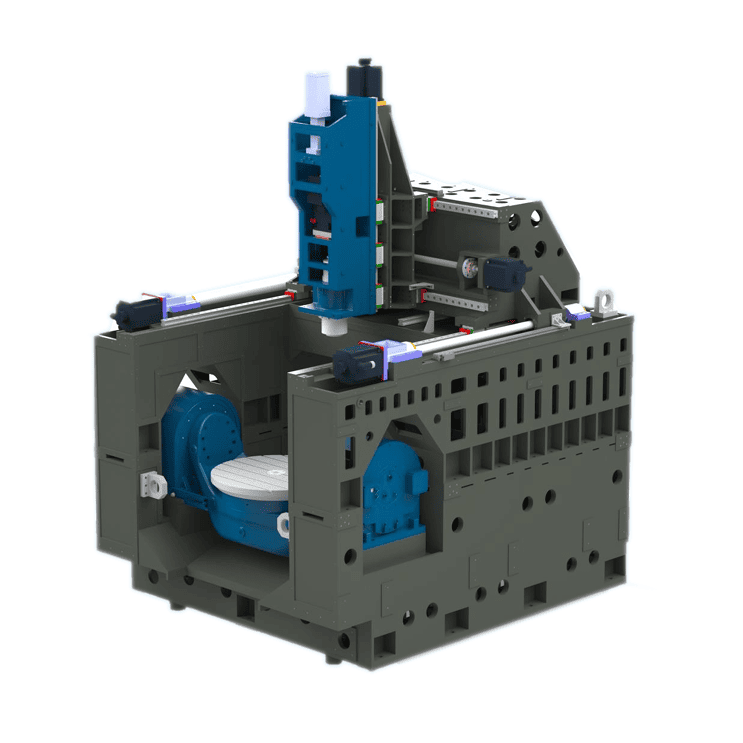

5 Axis CNC Milling TOM-TW650 Technical Specifications：
|
Model |
TOM-TW650 |
|
|
Travel |
X axis |
700mm |
|
Y axis |
780mm |
|
|
Z axis |
500mm | |
| The distance from the spindle end face to the turntable. |
120-620mm |
|
|
Table |
Table size |
Ф650 |
|
Max. load |
300kg | |
| T slot |
18H7 |
|
|
Spindle |
Type |
Direct connection |
|
Speed |
12000rpm | |
| Spindle diameter |
150mm |
|
|
Spindle taper |
BT40 | |
| Main motor |
11kw |
|
|
Screw |
X axis | 4012 |
|
Y axis |
5012 |
|
|
Z axis |
4012 |
|
|
Line rail |
X axis | RG45HA |
| Y axis |
RG45HA |
|
|
Z axis |
RG45HA |
|
|
5- axis Turntable |
Table diameter | 650mm |
|
0°load |
300kg | |
|
90°load |
100kg |
|
| Oscillation axis travel (A) |
-120 deg~+120 deg |
|
| Rotational axis travel (C) |
0~360 deg |
|
|
X/Y/Z axis fast movement speed |
36M/min | |
| Machine | Weight |
9000kg |
