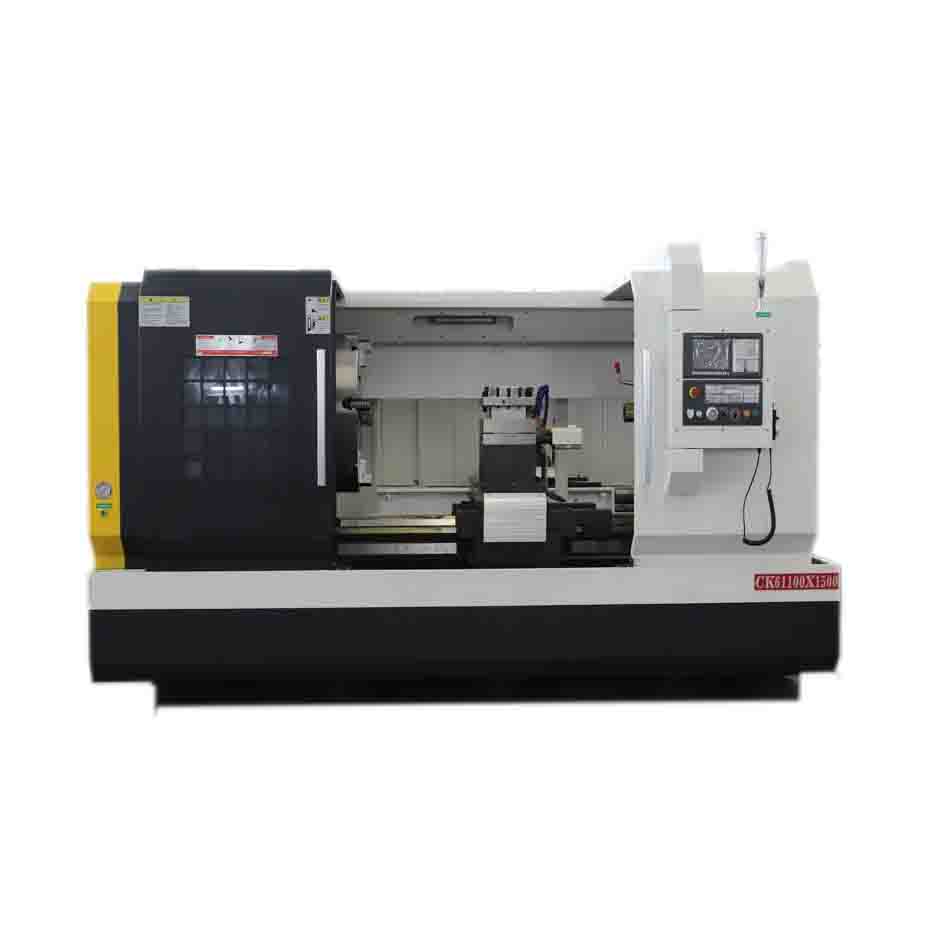

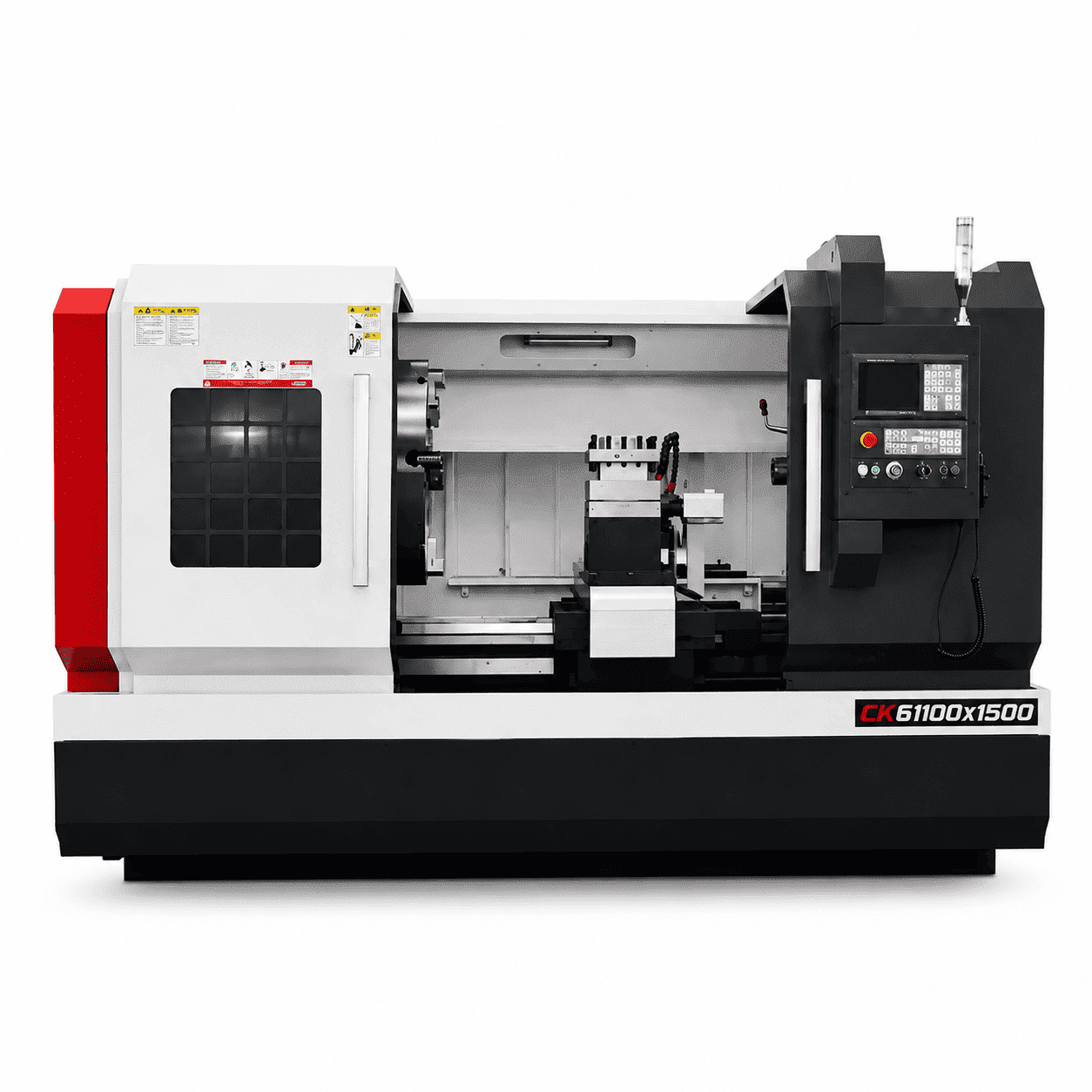

Best CNC Lathe Machine CK61100

· Best cnc lathe CK61100 is a large horizontal CNC lathe designed for heavy and large diameter workpieces. It is suitable for high-precision and high-efficiency machining of shafts, discs and complex rotating parts.

· With its large size, high stability and scalability, the CK61100 CNC lathe occupies a core position in the processing of large parts in the fields of energy, transportation, shipbuilding, heavy industry, etc. The processed workpieces include: turbine main shaft, wind power main shaft, gearbox shaft, axle, bogie main shaft, ship propulsion shaft, crankshaft, propeller shaft and other shaft parts of large machinery.

Share This Page

Product Categories

Best CNC Lathe CK61100 Feature

· Best cnc lathe ck61100 is designed with high-quality cast iron as a whole, and the bed rails are high-frequency quenched and precision ground, with strong anti-deformation ability, suitable for heavy cutting. The bed width reaches 600mm/650mm, providing a foundation for heavy cutting stability.

· Large-size spindle through hole, spindle through hole diameter 105mm, can process long shaft parts (large transmission shaft), workpiece processing length can reach 1000mm-6000mm.

· Using pre-stretched ball screw and linear rolling guide, the repeat positioning accuracy can reach ±0.01mm.

Technical Parameters	Unit	CK61100
Max.swing over bed	mm	1000
Max.swing over cross slide	mm	680
Max.length of work-piece	mm	1500
Width of bed	mm	600/650
Spindle hole	mm	105
Spindle nose		C11
Spindle taper hole		1：20/120（Metric）
Power of spindle motor	Kw	15
Mode of spindle speed		Three gears，smooth adjustment L: 25-100,M: 80-260,H: 240-700
Chuck size		K11-400 three jaw chuck
X/Z rapid traverse	mm/min	4000/5000
Min.Feeding set unit of X/Z	mm	0.001
Electric tool-post Model		HAK-21280
No.of tool stations		4 station
Tool shank size	mm	32*32
Tailstock sleeve stroke	mm	250
Tailstock sleeve diameter	mm	100
Tailstock sleeve taper		MT6
Positioning accuracy	mm	0.02
Repeatability positioning accuracy	mm	0.01
Dimensions	mm	3800×2200×2000
Machine weight	kg	7000/7700
