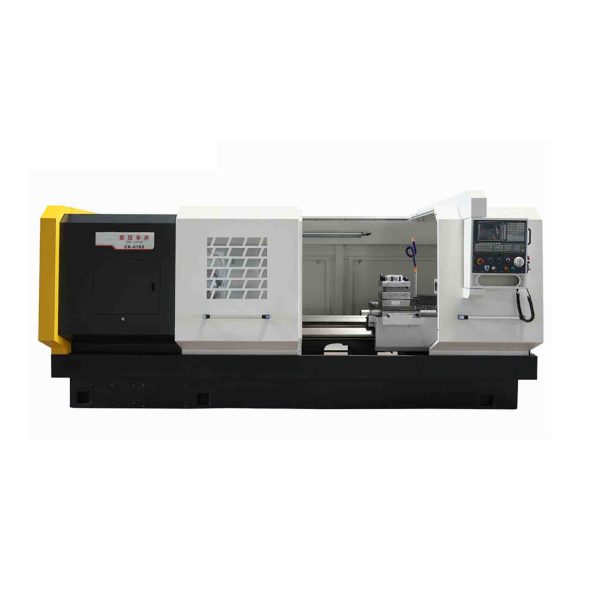

CNC Lathe Machine CK6163 Feature

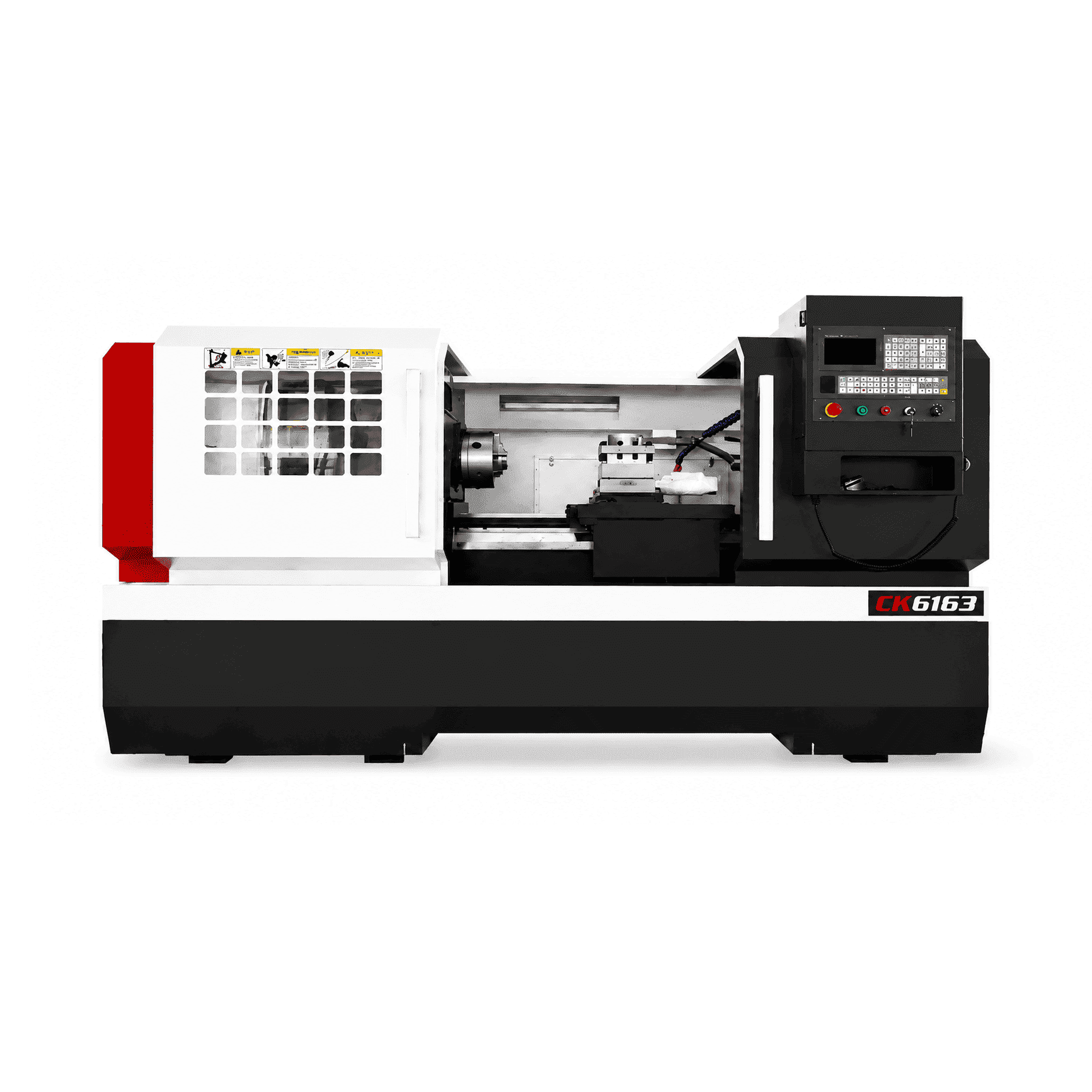

· Flat bed CNC lathe CK6163 is made of high-quality cast iron, which has been aging-treated and has strong shock resistance. The bed width reaches 550mm/600mm, ensuring stability during heavy cutting.
· The spindle through hole diameter is 105mm, which is convenient for processing long bars.
· Multi-station electric tool holder (4/6/8 stations), supports automatic tool change, shortens auxiliary time
· CNC Lathe Machine CK6163 equipped with mainstream CNC systems such as FANUC, Siemens, GSK, etc., supporting G-code programming, graphical interface and complex contour processing. At the same time, optional hydraulic tailstock, hydraulic chuck, etc. can be used to improve clamping efficiency and automation level.
|
Technical Parameters |
Unit |
CK6163 |
|
Max.swing over bed |
mm | 630 |
| Max.swing over cross slide | mm |
350 |
|
Width of bed |
mm | 550/600 |
| Spindle bore | mm |
105 |
|
Spindle nose |
C11 | |
| Mode of spindle speed |
Three gears，smooth adjustment L:40-125,M:110-350,H:290-950
|
|
|
Chuck size |
mm | 320mm three jaw chuck |
| Max.length of work-piece | mm |
1500/2000/3000/4000/5000 |
|
X/Z rapid traverse |
mm/min | 4000/8000 |
| Tool shank type | mm |
32*32 |
|
No.of tool stations |
4/6/8 | |
| Tailstock sleeve stroke | mm |
250 |
|
Tailstock sleeve diameter |
mm | 100 |
| Motor power | kw |
11 |
|
Positioning accuracy |
mm | 0.02 |
| Repositioning accuracy | mm |
0.01 |
|
Dimensions |
mm | 3700×1800×1800 |
| Machine weight | kg |
5000 |
