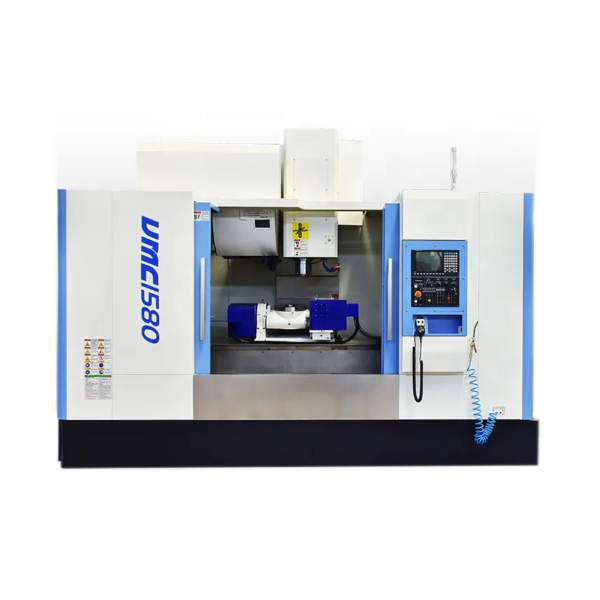

-VMC1580 is made of high-quality cast iron material with a large-span bed base and column structure to achieve superior shock absorption performance, support rigidity and excellent stability.
The large vertical turning center can be applied to many fields such as mechanical processing and mould manufacturing, canadapt from roughing to finishing processing requirements, has the characteristics of high precision, high efficiency, is widelyused in aerospace, mould, automobile, internal combustion engines, textile machinery, chemical machinery processing, oil, electronics and other industries.
|
Model |
VMC1580 | |
|
Travel |
X axis | 1500mm |
| Y axis | 800mm | |
| Z axis | 700mm | |
| Spindle nose to table | 160-860mm | |
|
Table |
Table size | 1600x800mm |
| Max. load | 1500kg | |
| T slot | 18-5-110mm | |
|
Spindle |
Type | Belt |
| Speed | 8000rpm | |
| Spindle diameter | 155mm | |
| Spindle taper | BT50 | |
| Main motor | 15kw | |
|
Acuracy |
Positioning Accuracy | ±0.01mm |
| Repeatibility | ±0.008mm | |
|
Machine |
Size | 4800*3200*3200mm |
| Weight | 12000kg | |
