Product Features

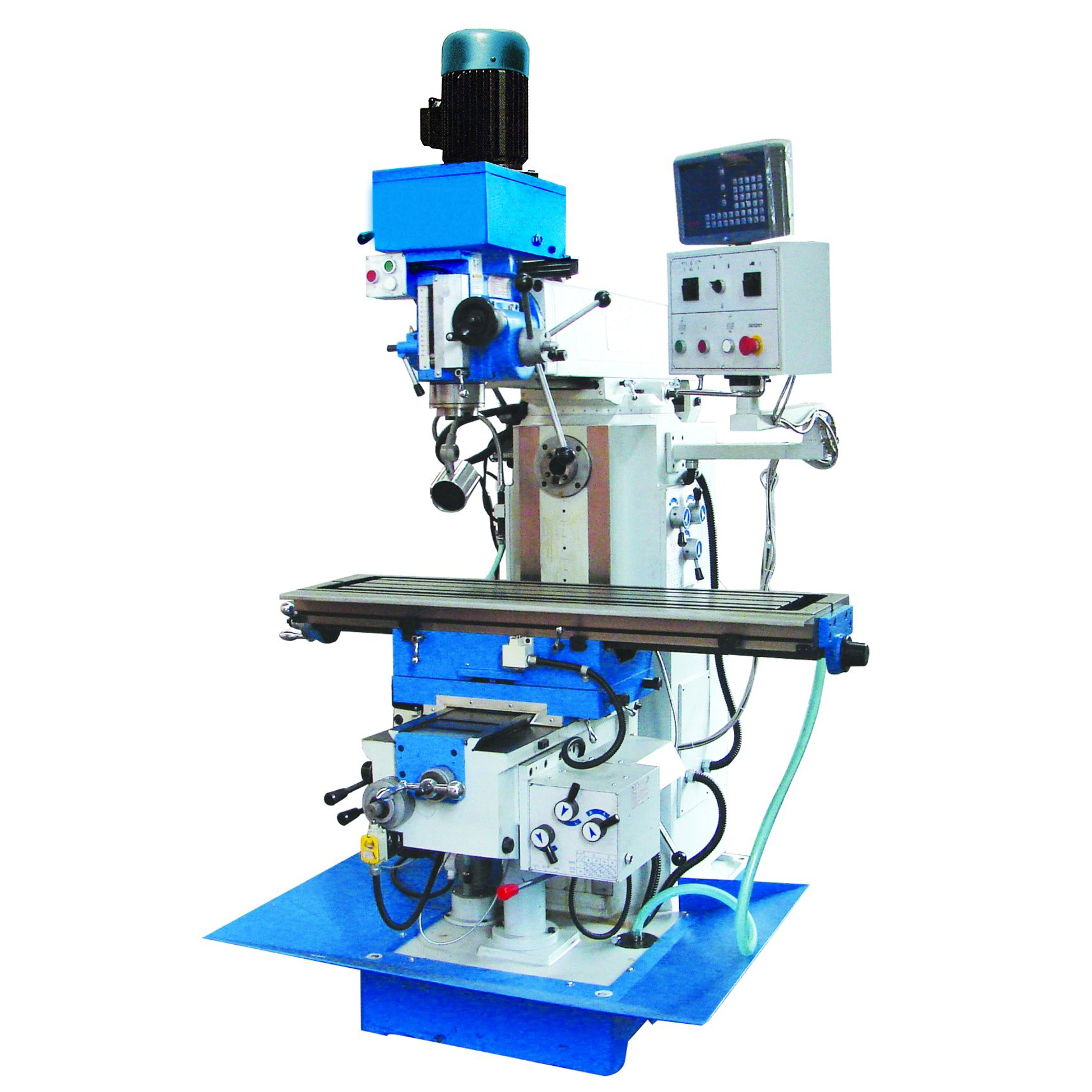

· Metal milling machine is multifunctional and automatic, making it suitable for various industries such as retail, machinery repair shops, and manufacturing plants.
| Unit | XZ6350ZS | |
| Table size | mm | 1270×320 |
| T slot | no | 3 |
| Size ( Width ) | mm | 14 |
| Centre distance | mm | 70 |
| Max. load of Table | kg | 250 |
| X direction table Longitudinal travel(manual/auto) | mm | 750 |
| Y direction table Cross travel (manual/auto) | mm | 270 |
| Z direction table Vertical travel(manual/auto) | mm | 380 |
| MAIN SPINDLE : | ||
| Spindle taper | ISO40 | |
| Spindle speed /step — Vertical | rpm | 90-2000/8 |
| –Horizontal | rpm | 60-1350/12steps |
| Max.drilling dia. | mm | 30 |
| Max.end milling width | mm | 125 |
| Max. vertical milling Dia. | mm | 25 |
| Max.tapping dia. | mm | 16 |
| Quill travel | mm | 120 |
| Swivel angle of headstock | degree | ±45º |
| Vertical spindle axis to column surface | mm | 220-560 |
| Vertical spindle nose to table surface | mm | 120-500 |
| Horizontal spindle axis to table surface | mm | 0-380 |
| Horizontal spindle axis to arm bottom | mm | 215 |
| Arm travel | mm | 400 |
| X /Y direction Longitudinal/cross feed | mm / min | 30-720 |
| Z direction Vertical | mm/min | 15-360 |
| X/Y direction Longitudinal/cross rapid speed | mm / min | 1070 |
| Z-direction Rapid traverse vertical | mm/min | 535 |
| Automatic spindle feed | 0.08/0.15/0.25 | |
| Main motor | kw | 2.2(V/H) |
| (X/Y/Z) feed motor | kw | 1.1 |
| Coolant motor | kw | 0.09 |
| Others： | ||
| Dimension | mm | 1680×1640×2200 |
| N/W | kg | 1650 |
