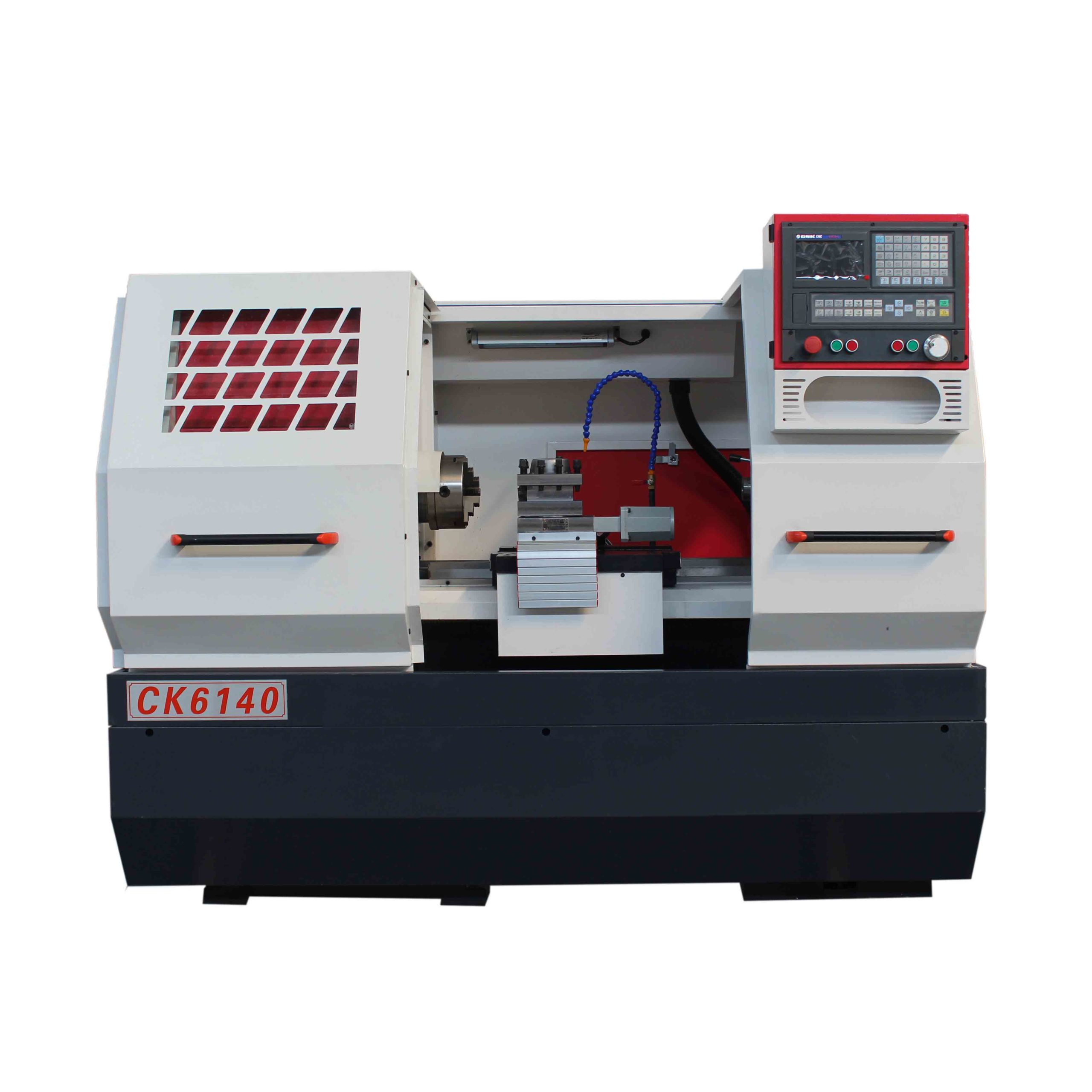

· CK6140 CNC lathe adopts a four-station CNC tool holder, and can be equipped with a 6/8-station turret to meet different processing requirements.
· Small CNC lathe ck6140 is strictly inspected according to the inspection procedures before leaving the factory. Each machine tool uses a laser interferometer to detect the X and Z axis positioning accuracy and repeat positioning accuracy to ensure the stability and reliability of the machine tool accuracy.
|
Technical Parameters |
Unit |
CK6140 |
|
Max.swing over bed |
mm |
400 |
|
Max.swing over cross slide |
mm |
200 |
|
Spindle hole |
mm |
60 |
|
x-axis travel |
mm |
220 |
|
Z-axis travel |
mm |
750/1000/2000 |
|
Tailstock sleeve stroke |
mm |
140 |
|
Tailstock sleeve diameter |
mm |
65 |
|
Motor power |
kw |
5.5 |
|
Positioning accuracy |
mm |
0.001 |
|
Dimensions |
mm |
2050×1400×1640 |
|
Machine weight |
kg |
1600 |
