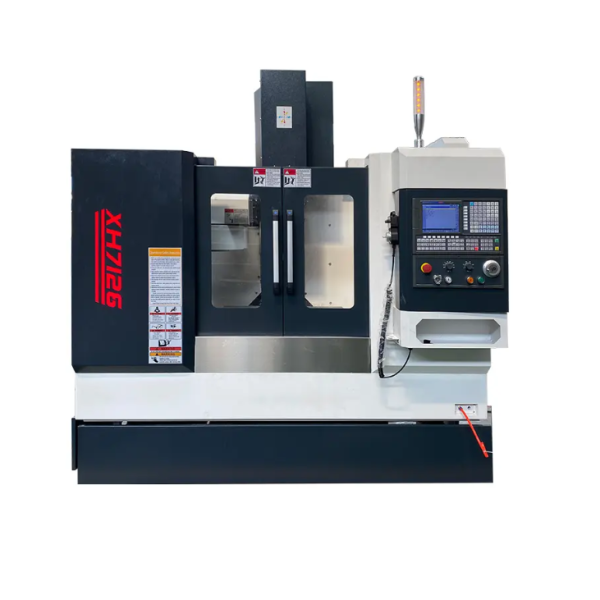

Small CNC Turning Center XH7126

· Small CNC Turning Center XH7126 is an ideal small and medium-sized precision and complex vertical machining center for processing various materials (especially non-ferrous metals and stainless steel).

· Table size：700mm*260mm

· Max.table load: 200kg

· Spindle taper：BT40

· Max. spindle speed: 8000rpm

Share This Page

Product Categories

Small CNC Turning Center XH7126 Features：

· High strength high quality HT300 cast iron

· OKADA/AIMACH 16T funnel type tool changer.

· Lead screw bearing using SKF or NACHI bearing

Main technical parameters：

Specifications	Units	XH7126
Table size	mm	700*260
T slot		31465
Max.table load	kg	200
X axis travel	mm	500
Y axis travel	mm	350
Z axis travel	mm	450
Spindle taper		BT-40
Spindle bore	mm	120
Max. spindle speed	r/min	8000
Distance between spindle center and column surface	mm	350
Distance between spindle nose and table surface	mm	100-550
Main motor power	kw	3.7
X/Y/Z axis servo motor torque	N.M	6/6/10
Position accuracy	mm	0.015
Repeat positioning accuracy	mm	0.01
Machine weight	kg	2000
Overall dimension	mm	180016002200
