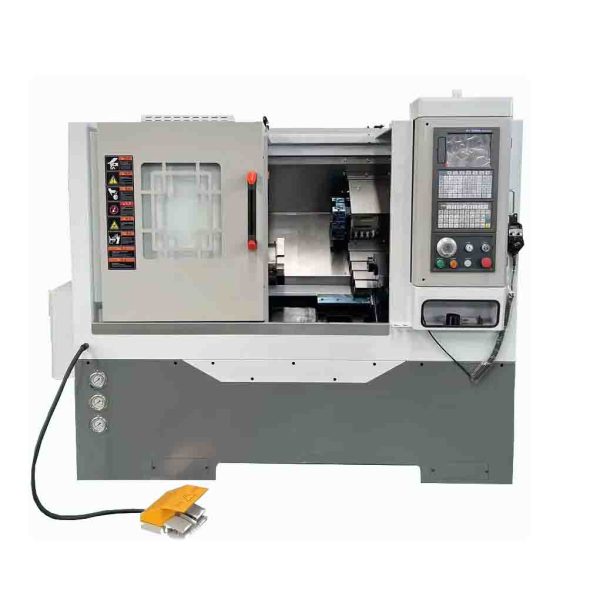

TCK40 Slant Bed CNC Lathe Machine Feature:
· Slant bed cnc lathe TCK40 standard Gang type tools, supporting radial/axial tool layout. Supporting 8-station turret and power turret (turn-mill compound), realizing compound processing such as drilling and milling.
· Low energy consumption operation, the servo motor supplies energy on demand, and with the efficient cooling system, the energy consumption is reduced by about 20%-30% compared with traditional machine tools.
· TCK40 supports docking with a robot or feeder to realize automatic feeding of bar materials and unmanned production (especially suitable for batch processing of small parts).
| Specifications
|
Unit | TCK40 |
| Swing over bed
|
mm | Φ400
|
| Swing over slide
|
mm | Φ120 |
| Spindle head form
|
– | A2-5 |
| Spindle motor power
|
kw | 5.5-7.5 |
| Max spindle speed
|
rpm | 4500 |
| Diameter of spindle through hole
|
mm | Φ49 |
| Inner diameter of pull through hole
|
mm | Φ41 |
| Turret form
|
– | Gang Type Tools/ 8-station hydraulic turret |
| Hydraulic chuck
|
inch | 6“ |
| X-axis travel
|
mm | 780 |
| Z-axis travel
|
mm | 400 |
| X/Z axis motor torque
|
n.m | 6/6 |
| X/Z axis motor torque moving speed
|
m/min | 24/24 |
| X/Z rail width
|
mm | 25/30 |
| Repeat positioning accuracy
|
mm | ±0.004 |
| Tool size
|
mm | 20×20 |
| Dimensions
|
m | 1.92×1.55×1.7 |
| Machine weight (about)
|
t | 1.7 |
