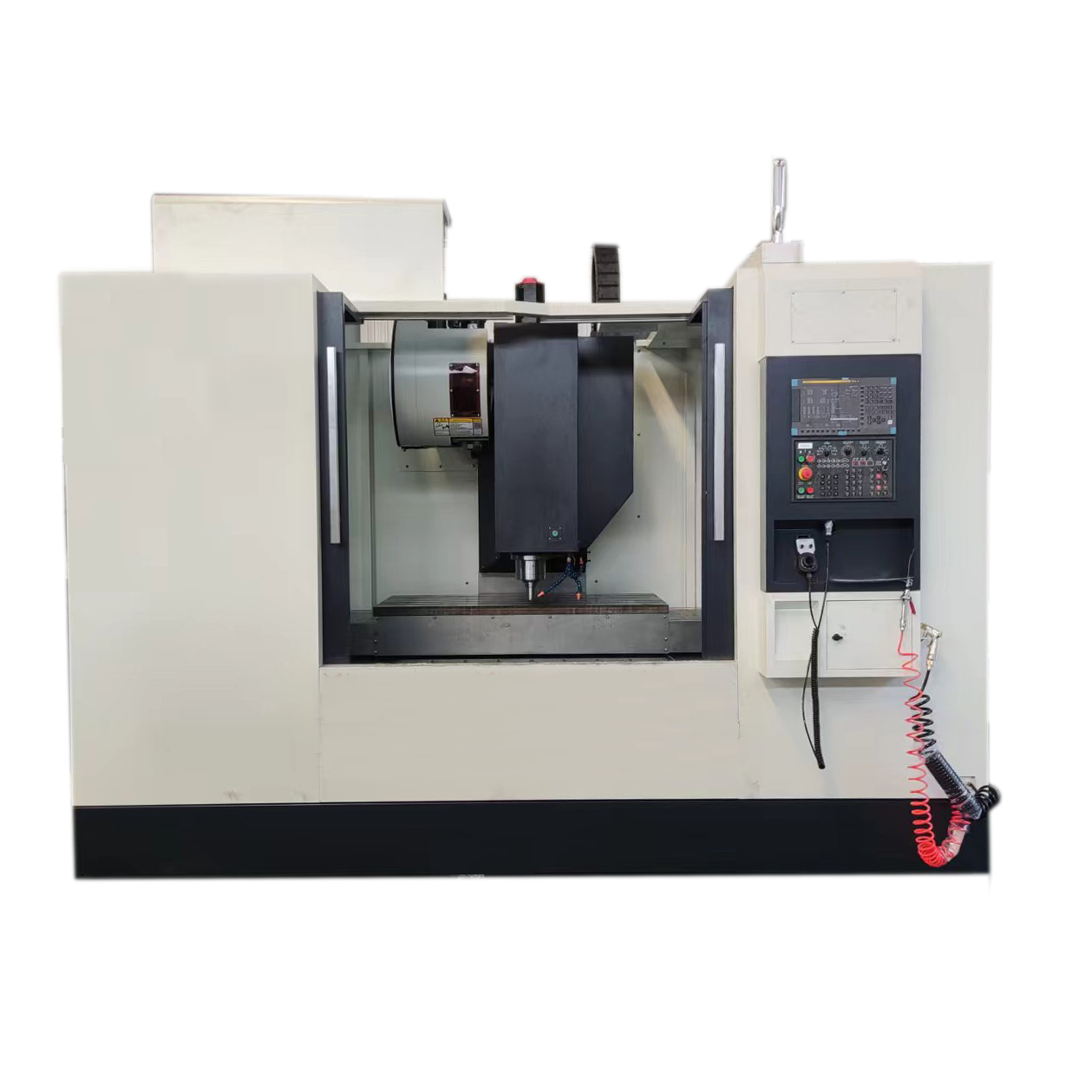

Vertical CNC Turning Machining Center VMC1270

· Vertical CNC turning machining center VMC1270 is a medium-sized, high-rigidity, high-efficiency vertical machining center (VMC). The “1270” in its name usually refers to the maximum travel of its X-axis (left and right direction) of about 1270 mm, which makes it an ideal choice for processing medium-sized workpieces and is widely used in machinery manufacturing, molds, automotive parts, aerospace, energy equipment and other field

· 3 axes are driven by servo motors, and can clamp all kinds of complex parts such as disks, plates, housings, cams, and molds at one time.

· This vertical milling machine can realize drilling, milling, boring, expanding, reaming, tapping and other processing processes, and is suitable for the production of multiple varieties and small and medium batches of parts.

Share This Page

Product Categories

Vertical CNC Turning Machining Center VMC1270 Feature

· The three axes use high rigidity, high positioning accuracy, low noise, and low friction linear guides to achieve fast displacement and optimal circumferential accuracy. Linear guide brands: HIWIN/THK/PMI

X-axis：RG45HA，Y-axis：RG55HA，Z-axis：RG45HA

· The one-piece casting bed, column and wide guideway support design ensure excellent stability, precision and vibration resistance during heavy cutting and high-speed machining.

· OKADA Brand Spindle and Magazine

· 24 Station arm type ATC

· Chain chip conveyor

· Configuration system: FANUC, SIEMENS, MITSUBISHI, GSK

· Three-axis bearing brand: FAG

Main technical parameters：

Model		VMC1270
Travel	X axis	1200mm
	Y axis	700mm
	Z axis	650mm
	Spindle nose to table	130-780mm
	Max. X,Y ,Z rapid feed	16m/min
Table	Table size	1360x700mm
	Max. load	1000kg
	T slot	18-5-122mm
Spindle	Type	Belt
	Speed	8000rpm
	Spindle diameter	155mm
	Spindle taper	BT50
	Main motor	15kw
Acuracy	Positioning Accuracy	±0.005mm
Acuracy	Repeatibility	±0.003mm
Machine	Size	3600x2500x2700mm
Machine	Weight	9300kg
