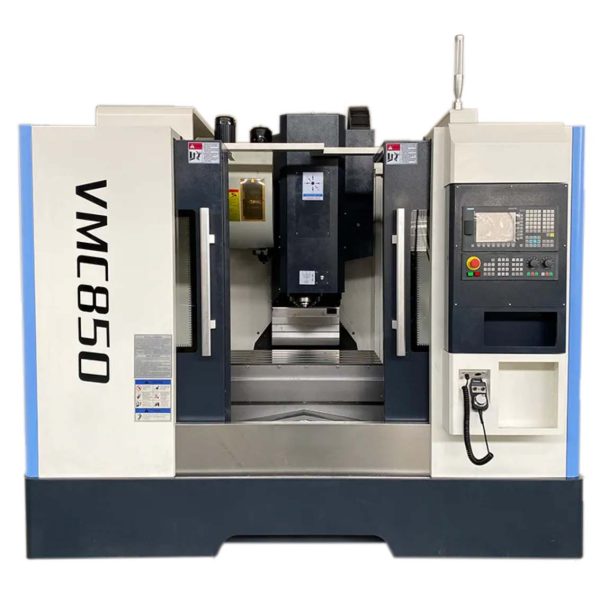

Vertical Milling Center Machine Feature
. VMC850 vertical milling machine utilizes precision linear guides to ensure accurate positioning of the workpiece and tools during the machining process.
.The VMC850 is capable of achieving high accuracy and repeatability, making it ideal for precision machining operations.

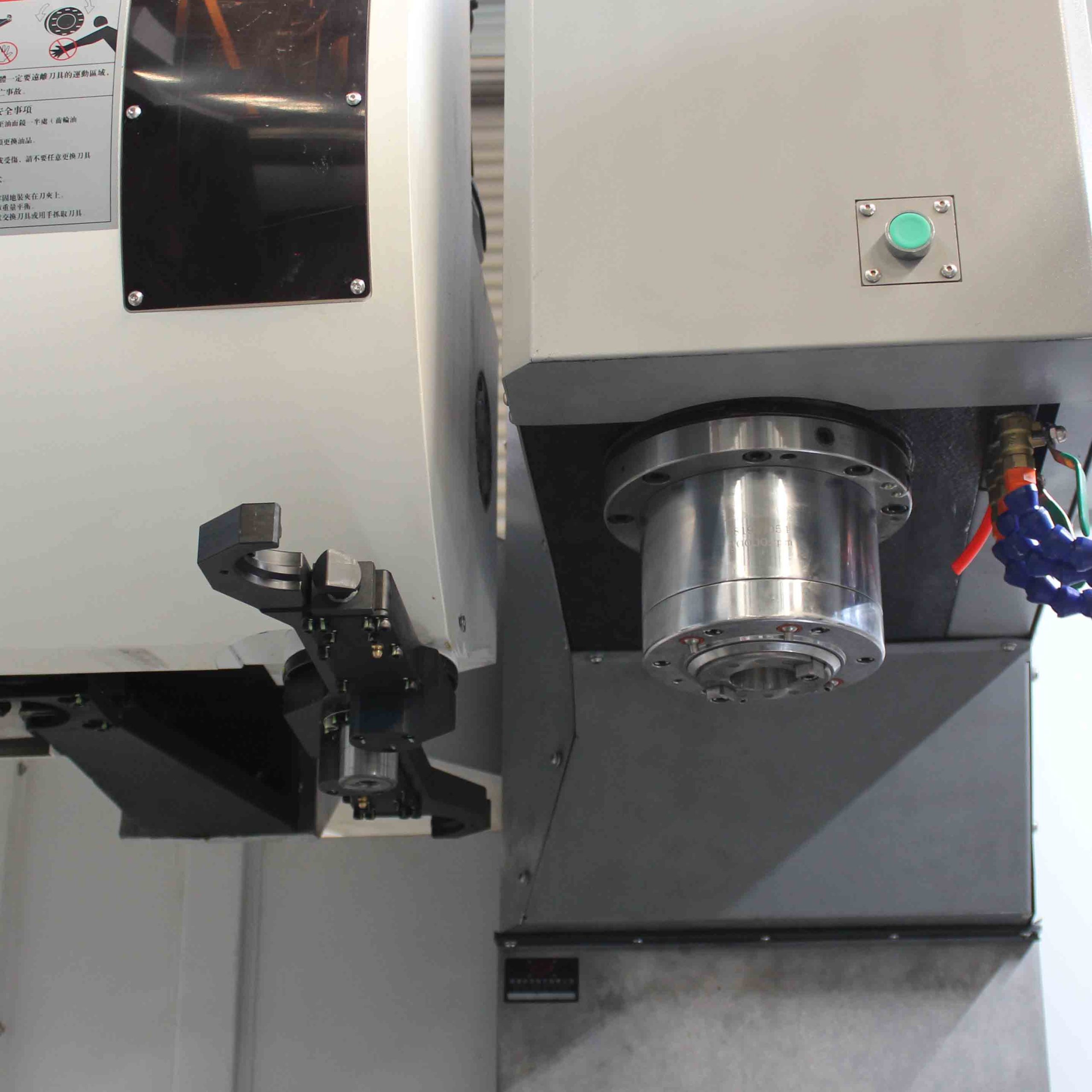

·Adopts Taiwan’s first-line brand ROYAL, KENTURN spindle, with high precision and high rigidity.
|
Technical Parameters |
Unit | VMC850 |
|
Table size |
mm |
1000*500 |
|
Max capacity |
kg |
500 |
|
T-groove |
18*5*90 |
|
|
X-axis travel |
mm |
800 |
|
Y-axis travel |
mm |
500 |
|
Z-axis travel |
mm | 500 |
|
Spindle speed |
rpm |
8000 |
| Spindle Taper | Type |
BT-40 |
|
Spindle motor(x,y,z) |
kw |
15/15/23 |
|
Distance from spindle center to column |
mm |
550 |
|
Distance from spindle nose to worktable |
mm |
120-620 |
|
Positioning accuracy |
mm |
0.01 |
|
Repetition accuracy |
mm |
0.008 |
|
Dimensions |
mm |
2550*2250*2400 |
| Machine weight | kg |
5000 |
