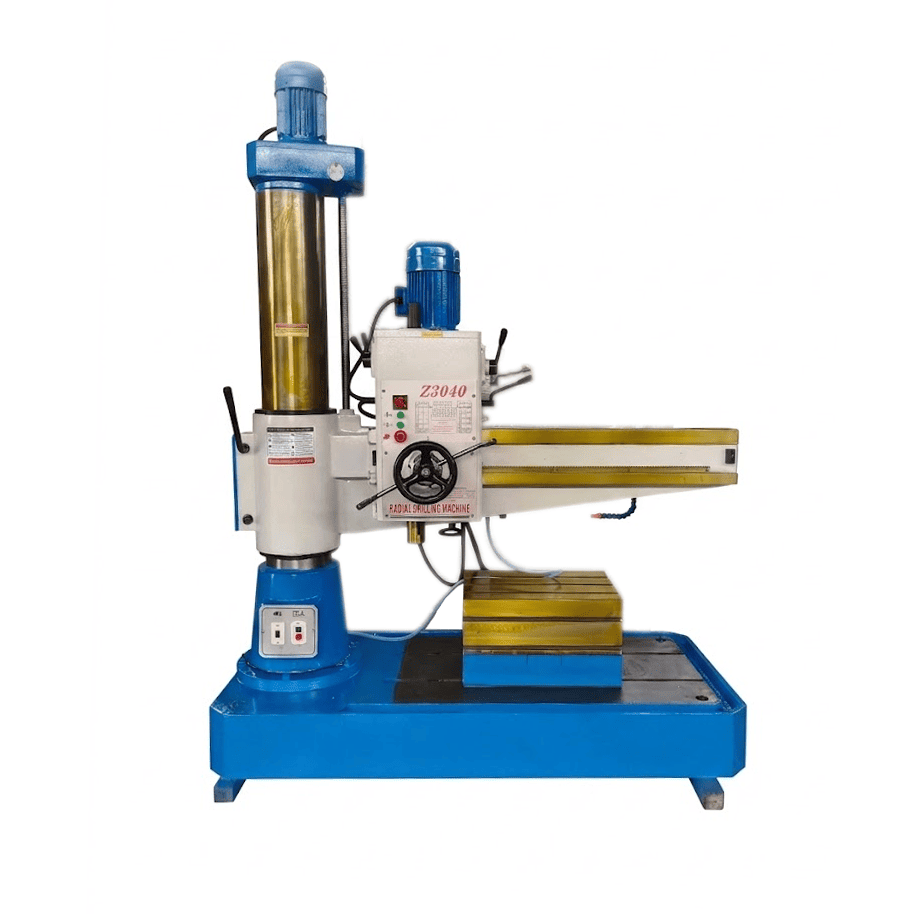

Small Radial Drilling Press Z3040x10

Small Radial Drilling Press Z3040 x 10 is suitable for drilling, enlarging, reaming, spot-facing, and tapping operations on large and medium-sized workpieces. When equipped with appropriate tooling, it is also capable of boring operations.

· Max.drilling dia：40mm

· Type：Mechanical

· Spindle Speed：75-1220r/min

Share This Page

Product Categories

Small Radial Drilling Press Z3040x10 Technical Parameters

Item	Unit	Z3040 X10
Max.drilling dia	mm	40
Distance from spindle nose to table surface	mm	260-1050
Distance between spindle axis and column surface	mm	360-1000
Spindle travel	mm	200
Spindle taper		MT4
Spindle speeds range	rpm	75-1220
Spindle speed steps		6
Rocker rotary angle	°	±90
Main motor power	kw	2.2
Movements motor power	kw	0.75
Weight	kg	1000
Overall dimensions	mm	15007052300
